Shanghai Kinco Automation Co. Ltd. specializes in the research, development, production, sales and technical services of industrial automation products, providing integrated solutions for industrial automation equipment manufacturers. In addition to domestic sales, the company’s products are also sold to Turkey, India, Italy, and Germany. And other countries and regions, is China’s leading supplier of machine automation solutions. The com-pany’s main products include industrial human-machine interface, servo system, stepper system, programmable logic controller, low-voltage inverter, widely used in textile machinery, packaging machinery, logistics machinery, industrial robots, medical equipment, electronic manufacturing equipment, building materials machinery, HVAC equipment, and other automation equipment. The company’s industrial HMI product market share has maintained a leading position among local brand manufacturers for many years. The company implements the total quality management from R&D, production to sales in strict accordance with the requirements of ISO9001 quality system, and guarantees rapid response to customer needs in the form of project management system.
Inverter
Kinco vector VFD undertakes the company concept of “Provide high quality, high performance, high stability products”, it is a high performance vector VFD.
- FV20 series
- CV100 series
- Cv20 series

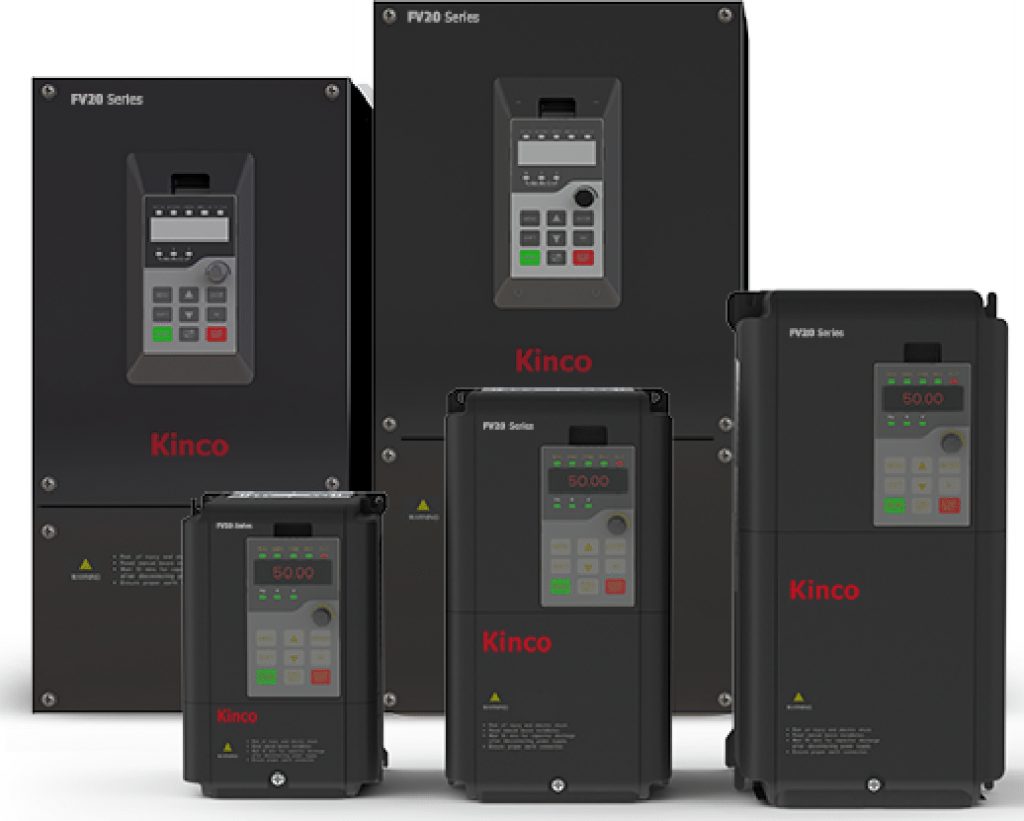

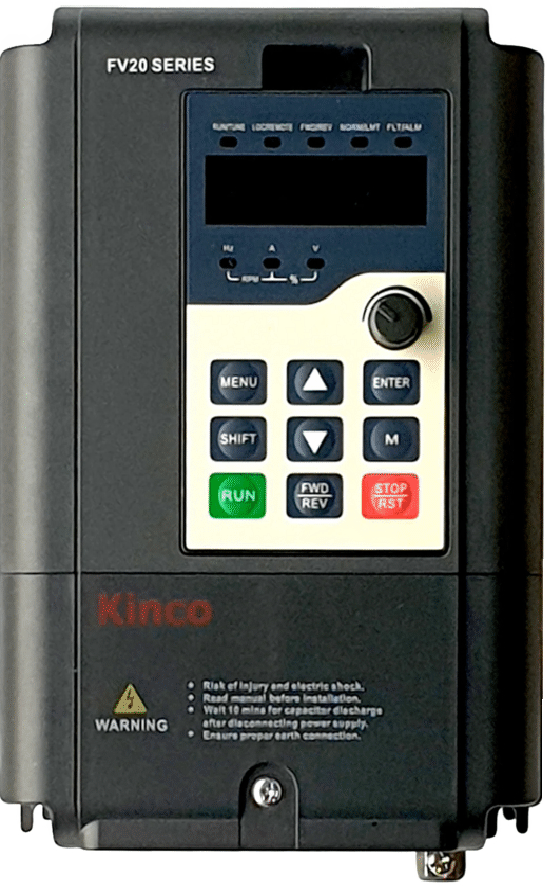

Fv20 Series VFD
FV20 series inverter is a general-purpose high-performance vector inverter, which is mainly used to control and adjust the speed and torque of three-phase AC asynchronous motor. It is a technical upgrade product of FV100 series. FV20 adopts high-performance vector control technology, low speed and high torque output, good dynamic characteristics, superior overload capability, those 45KW and below has built-in EMC filter and brake unit, added user programmable function and background monitoring
software. Support a variety of PG cards, combined rich and powerful features, stable performance. It can be used in textile, paper, wire drawing, machine tools, packaging, food, fans, pumps and various automated production equipment.
CV100 Series VFD
CV100 series is mini type VFD, compact design, V/F control, power range: 400W-7.5kW.
Main features
- Control mode: V/F control;
- Carrier frequency up to 15 kHz;
- Auto torque boost and slip compensa-tion function;
- Built-in PID control;
- Standard equipped Modbus (RS485 baud rate up to 38400bps);
- Sleep/wake up function.
CV20 Series VFD
Main features
- Output frequency 0 -300Hz
- V / F control and settable V / F curve
- Carrier frequency 6 KHz
- Automatic torque lifting and automatic slip compensation
- Built in modbus, RS485 baud rate up to 19200bps
